MCP (Model Context Protocol)

Summary

  • model: means machine learning models

  • model context protocol: the standard to adding more context ability for ai model. It’s an open-source standard for connecting AI applications to external systems.

  • the protocol contains:

    • specification (schema) of client/server implementation requirements:

      • JSON-RPC: as the main communication media type

      • lifecyce management

      • authorization

      • transports: how client & server communicate

      • server features

      • client features: this makes the server can be interactive with the client side.

      • other utilities

    • sdks

    • tools

    • etc.

Architecture

Architecture overview - Model Context Protocol

Architecture - Model Context Protocol

  • It’s a client-host-server architecture. Host can coordinate and run mutliple client instances. And each client instance can connect with server to use external abilities.

  • The whole communication is based on json messages.

  • The key concepts are the primitives provided by both client & server. Those primitives enable the client to send request to be finished by server, and server can send request to client for further information from user

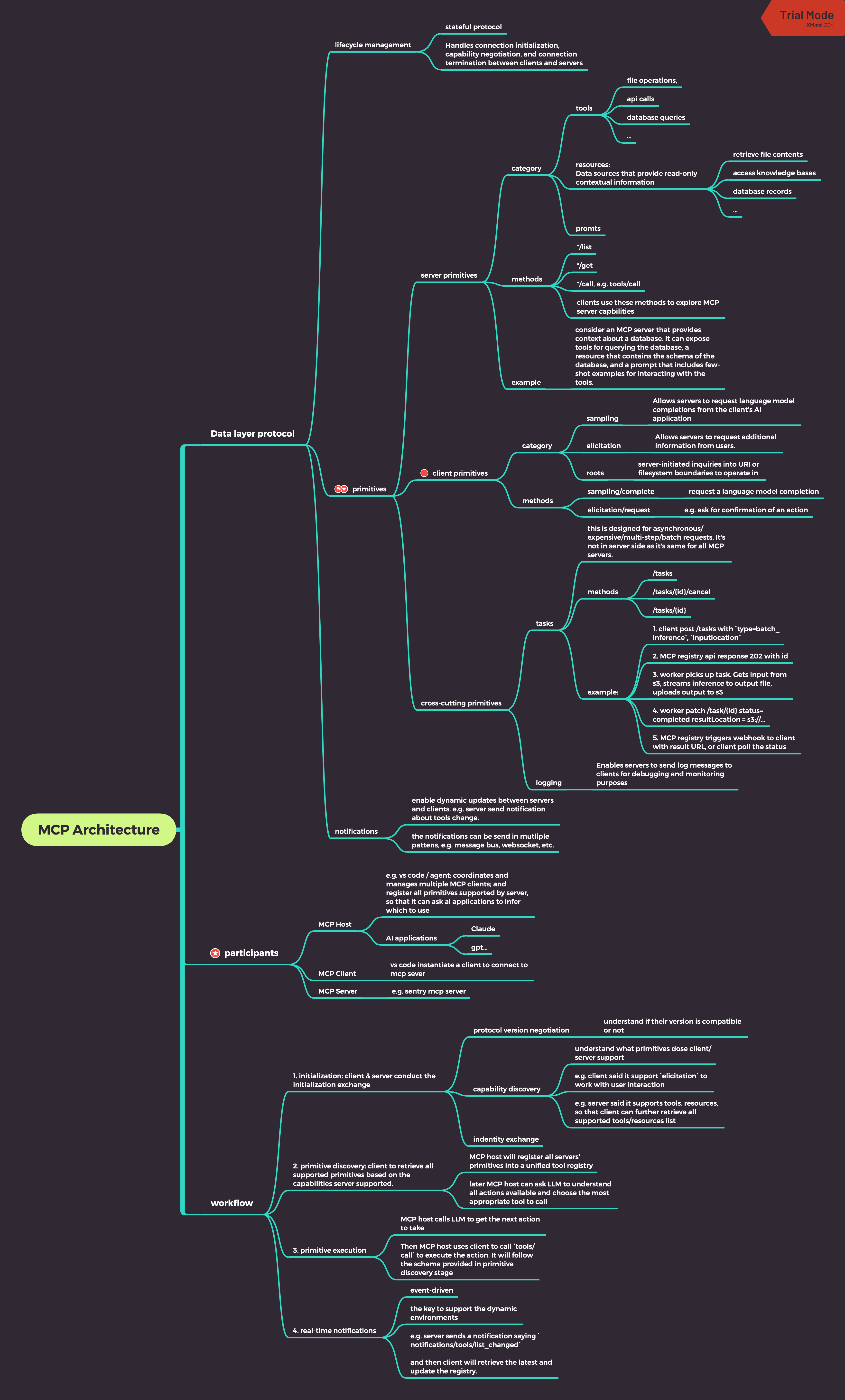

Key Notes


workflow examples

example workflow - Model Context Protocol

1. initialization

client request:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "initialize",
  "params": {
    "protocolVersion": "2025-06-18",
    "capabilities": {
      "elicitation": {}
    },
    "clientInfo": {
      "name": "example-client",
      "version": "1.0.0"
    }
  }
}

server response:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
{
  "jsonrpc": "2.0",
  "id": 1,
  "result": {
    "protocolVersion": "2025-06-18",
    "capabilities": {
      "tools": {
        "listChanged": true
      },
      "resources": {}
    },
    "serverInfo": {
      "name": "example-server",
      "version": "1.0.0"
    }
  }
}

2. primitive discovery

client request:

1
2
3
4
5
{
  "jsonrpc": "2.0",
  "id": 2,
  "method": "tools/list"
}

server response:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
{
  "jsonrpc": "2.0",
  "id": 2,
  "result": {
    "tools": [
      {
        "name": "calculator_arithmetic",
        "title": "Calculator",
        "description": "Perform mathematical calculations including basic arithmetic, trigonometric functions, and algebraic operations",
        "inputSchema": {
          "type": "object",
          "properties": {
            "expression": {
              "type": "string",
              "description": "Mathematical expression to evaluate (e.g., '2 + 3 * 4', 'sin(30)', 'sqrt(16)')"
            }
          },
          "required": ["expression"]
        }
      },
      {
        "name": "weather_current",
        "title": "Weather Information",
        "description": "Get current weather information for any location worldwide",
        "inputSchema": {
          "type": "object",
          "properties": {
            "location": {
              "type": "string",
              "description": "City name, address, or coordinates (latitude,longitude)"
            },
            "units": {
              "type": "string",
              "enum": ["metric", "imperial", "kelvin"],
              "description": "Temperature units to use in response",
              "default": "metric"
            }
          },
          "required": ["location"]
        }
      }
    ]
  }
}

primitive execution

client request:

1
2
3
4
5
6
7
8
9
10
11
12
{
  "jsonrpc": "2.0",
  "id": 3,
  "method": "tools/call",
  "params": {
    "name": "weather_current",
    "arguments": {
      "location": "San Francisco",
      "units": "imperial"
    }
  }
}

server response:

1
2
3
4
5
6
7
8
9
10
11
12
{
  "jsonrpc": "2.0",
  "id": 3,
  "result": {
    "content": [
      {
        "type": "text",
        "text": "Current weather in San Francisco: 68°F, partly cloudy with light winds from the west at 8 mph. Humidity: 65%"
      }
    ]
  }
}

4. notifications

server notification:

1
2
3
4
{
  "jsonrpc": "2.0",
  "method": "notifications/tools/list_changed"
}

Primitives examples

Understanding MCP servers - Model Context Protocol

Understanding MCP clients - Model Context Protocol

tools

example server tool definition response:

1
2
3
4
5
6
7
8
9
10
11
12
13
{
  name: "searchFlights",
  description: "Search for available flights",
  inputSchema: {
    type: "object",
    properties: {
      origin: { type: "string", description: "Departure city" },
      destination: { type: "string", description: "Arrival city" },
      date: { type: "string", format: "date", description: "Travel date" }
    },
    required: ["origin", "destination", "date"]
  }
}

resources

example server resource definition response:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
{
  "uriTemplate": "weather://forecast/{city}/{date}",
  "name": "weather-forecast",
  "title": "Weather Forecast",
  "description": "Get weather forecast for any city and date",
  "mimeType": "application/json"
}

{
  "uriTemplate": "travel://flights/{origin}/{destination}",
  "name": "flight-search",
  "title": "Flight Search",
  "description": "Search available flights between cities",
  "mimeType": "application/json"
}

prompt

example server prompt definition response:

1
2
3
4
5
6
7
8
9
10
11
{
  "name": "plan-vacation",
  "title": "Plan a vacation",
  "description": "Guide through vacation planning process",
  "arguments": [
    { "name": "destination", "type": "string", "required": true },
    { "name": "duration", "type": "number", "description": "days" },
    { "name": "budget", "type": "number", "required": false },
    { "name": "interests", "type": "array", "items": { "type": "string" } }
  ]
}

elicitation

example client elicitation definition response:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
{
  method: "elicitation/requestInput",
  params: {
    message: "Please confirm your Barcelona vacation booking details:",
    schema: {
      type: "object",
      properties: {
        confirmBooking: {
          type: "boolean",
          description: "Confirm the booking (Flights + Hotel = $3,000)"
        },
        seatPreference: {
          type: "string",
          enum: ["window", "aisle", "no preference"],
          description: "Preferred seat type for flights"
        },
        roomType: {
          type: "string",
          enum: ["sea view", "city view", "garden view"],
          description: "Preferred room type at hotel"
        },
        travelInsurance: {
          type: "boolean",
          default: false,
          description: "Add travel insurance ($150)"
        }
      },
      required: ["confirmBooking"]
    }
  }
}

root

example client response to a server root request:

1
2
3
4
{
  "uri": "file:///Users/agent/travel-planning",
  "name": "Travel Planning Workspace"
}

sampling

example server request to client for model support:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
{
  messages: [
    {
      role: "user",
      content: "Analyze these flight options and recommend the best choice:\n" +
               "[47 flights with prices, times, airlines, and layovers]\n" +
               "User preferences: morning departure, max 1 layover"
    }
  ],
  modelPreferences: {
    hints: [{
      name: "claude-sonnet-4-20250514"  // Suggested model
    }],
    costPriority: 0.3,      // Less concerned about API cost
    speedPriority: 0.2,     // Can wait for thorough analysis
    intelligencePriority: 0.9  // Need complex trade-off evaluation
  },
  systemPrompt: "You are a travel expert helping users find the best flights based on their preferences",
  maxTokens: 1500
}
